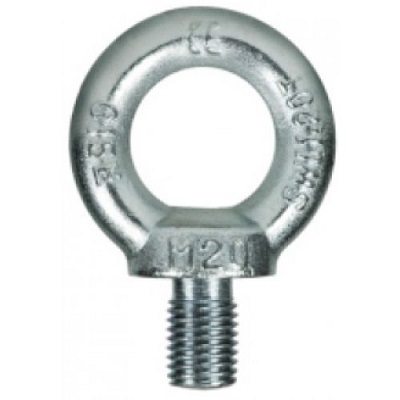

Erkek Aybolt

Bilgi Alın

Erkek Aybolt

*Ölçü* (Size) di	Güvenli Çalışma Yükü (90°) (working load limit (90°)) kg	d2 mm	d3 mm	d4 mm	h mm	L mm	*Birim Ağırlığı* (weight per pieces) Kg
M 6	70	20	36	20	47,0	13,0	0,03
M 8	140	20	36	20	49,0	13,0	0,06
M 10	230	25	45	25	63,0	17,0	0,10
M 12	340	30	54	30	73,5	20,5	0,18
M 14	490	35	63	35	87,0	27,0	0,28
M 16	700	35	63	35	89,0	27,0	0,28
M 20	1200	40	72	40	101,0	30,0	0,42
M 24	1800	50	90	50	126,0	36,0	0,83
M 30	3600	65	108	60	154,0	45,0	1,66
M36	5100	75	126	70	182,0	54,0	2,65
